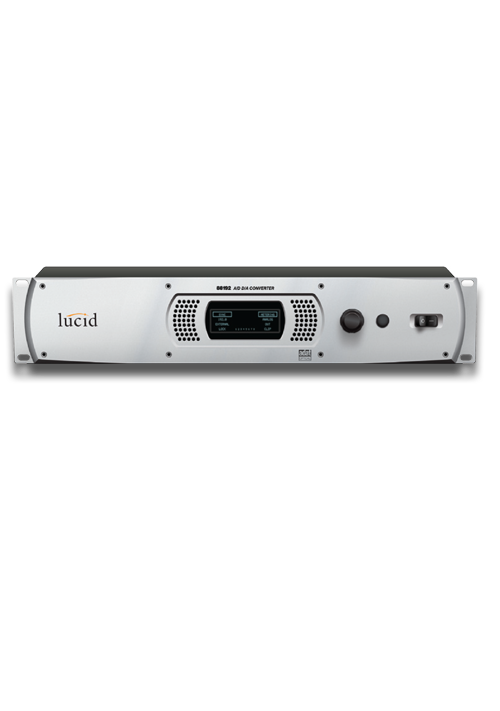

LUCID 88192 A/DD/A

L ucid's 88192 is designed for the rigors and complexities of today's hi-definition digital recording, post-production, and broadcast environments, and guarantees excellence in audio conversion and management. A/D conversion is one of the most critical links in the chain, and the 88192 offers sample-rates up to 192kHz and sports legendary Lucid converters. This multi-format audio converter provides eight channels of AES/EBU and eight channels of SMUX2 ADAT digital audio to and from the host at sample rates up to 192 kHz. Lucid converters are designed to faithfully convert analog signals to digital information, and vice versa, with the highest fidelity and as much accuracy as possible. Extremely low distortion and jitter, coupled with wide frequency response translates into clean, quiet, accurate, and stunning recordings.

Technical Specification

I t is Double rack space, 8-channel, analog to digital/digital to analog, multi-format converter. Its Sample rates up to 192 kHz with 24-bit audio conversion.it consist of Eight channels of AES/EBU and eight channels of SMUX ADAT digital audio. its sampling frequency is 30-200 kHz, depending on clock source.it is Real-time metering and XLR analog and AES connectors (No D-sub breakout snakes required).

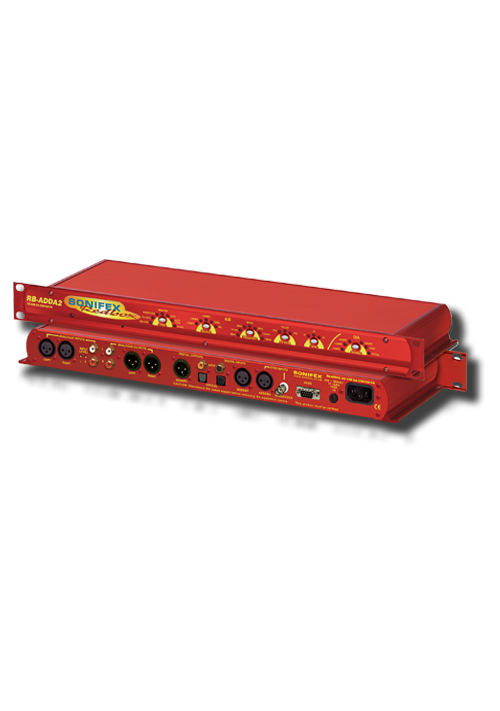

ADDA SONIFEX REDBOX-CONVERTERS

T he RB-ADDA2 A/D and D/A converter is a 1U rack-mount which produces an AES/EBU, S/PDIF or TOSlink optical level digital audio output from a balanced XLR or unbalanced phono stereo audio input. It also produces a stereo balanced XLR or unbalanced phono output from an incoming AES/EBU, S/PDIF or TOSlink optical digital input signal.

Technical Specification

It supports higher sample frequency rates up to and including 176.4kHz and 192kHz.It has additional independent AES/EBU and Word Clock synchronising inputs, so that the A/D and D/A sections can operate independently, with the digital outputs synchronised to an external master reference clock.It includes TOSlink optical digital audio input and output.It has front panel push-button switches for all the main settings. The buttons are arranged in sets, where pressing the button advances the current selection and LED indicator.A serial RS232 port is included so that the RB-ADDA2 settings can be controlled remotely. The front panel LED indicators alter automatically when using RS232 commands.
